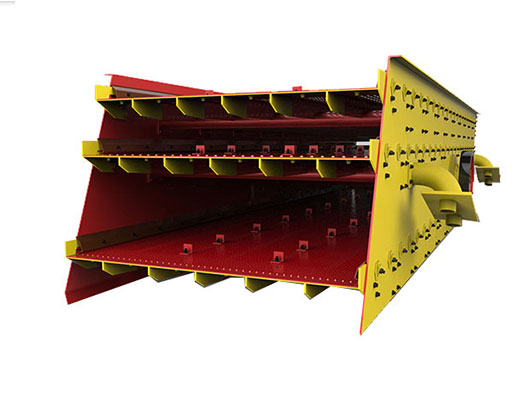

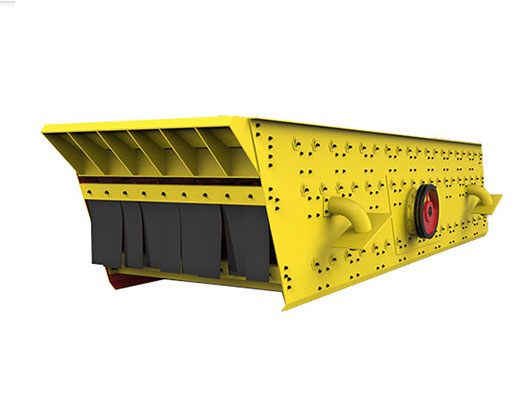

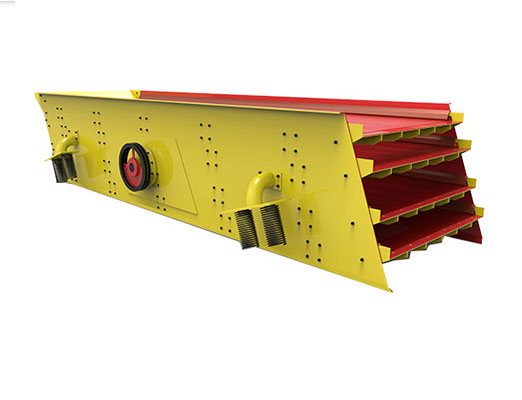

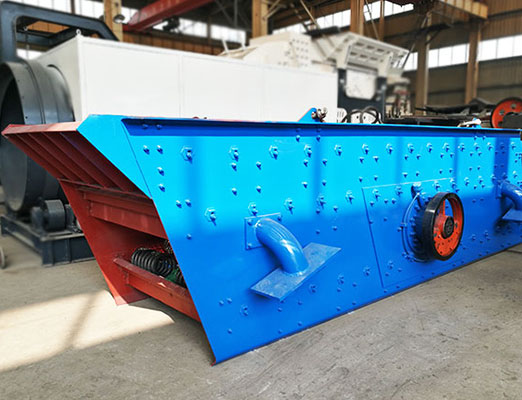

Vibrating Screen

Introduction:Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.


TAG:  Vibrating Screen

E-mail:sales@unique-cons.com

  • Overview
  • Parameters
  • Configuration
  • Downloads

Circular Vibrating Screen is widely used for grading and screening materials in the fields of minerals, quarry, building materials, etc. Our vibrating screen has multi-layers and its screen size is various, it can screen out many kind of materials with different sizes.

Features:

1. Stable performance under violent vibrating, for the fixing bolts are widely applied to connecting the main frame and the screen tightly.

2. Large handling capacity, which can reach 810 ton per hour.

3. Long flow line and various screening specifications.

4. Small amplitude, high frequency, large-inclination structure, high efficiency, large capacity, long service life, low power consumption and noise.


TAG:  Vibrating Screen

Parameters:

Model Sieve Layer Mesh Size(mm) Max. Feeding Size(mm)

Capacity

(m³/h)

Motor Power(kw) Weight(kg)
2YK1225 2 4-50 400 8-60 5.5 2500
3YK1225 3 4-50 400 10-70 5.5 2850
2YK1230 2 4-50 400 12-78 7.5 3000
3YK1230 3 4-50 400 13-80 7.5 3600
2YK1237 2 4-50 400 15-86 7.5 3600
3YK1237 3 4-50 400 16-90 7.5 4200
2YK1535 2 5-50 400 20-125 11 4890
3YK1535 3 5-50 400 21-125 11 5700
2YK1545 2 5-50 400 22-150 15 5330
3YK1545 3 5-50 400 22-150 15 5800
2YK1548 2 5-50 400 22.5-162 15 5980
3YK1548 3 5-50 400 22.5-162 15 6600
2YK1848 2 5-80 400 25-206 15 7080
3YK1848 3 5-80 400 32-276 18.5 7600
2YK1854 2 5-80 400 32-312 18.5 8150
3YK1854 3 5-80 400 32-312 22 8840
2YK2160 2 5-100 400 50-475 30 9780
3YK2160 3 5-100 400 50-475 30 10800
2YK2460 2 5-100 400 65-550 37 13600
3YK2460 3 5-100 400 70-620 37 15600




TAG:  Vibrating Screen

The vibrating screen is to drive vibrator through V-belt under the power of ordinary motor, so that the screen body along the vibrating power direction to make a cyclical reciprocating, the material in the screen surface to make round movement, so as to make the materials sieved.
